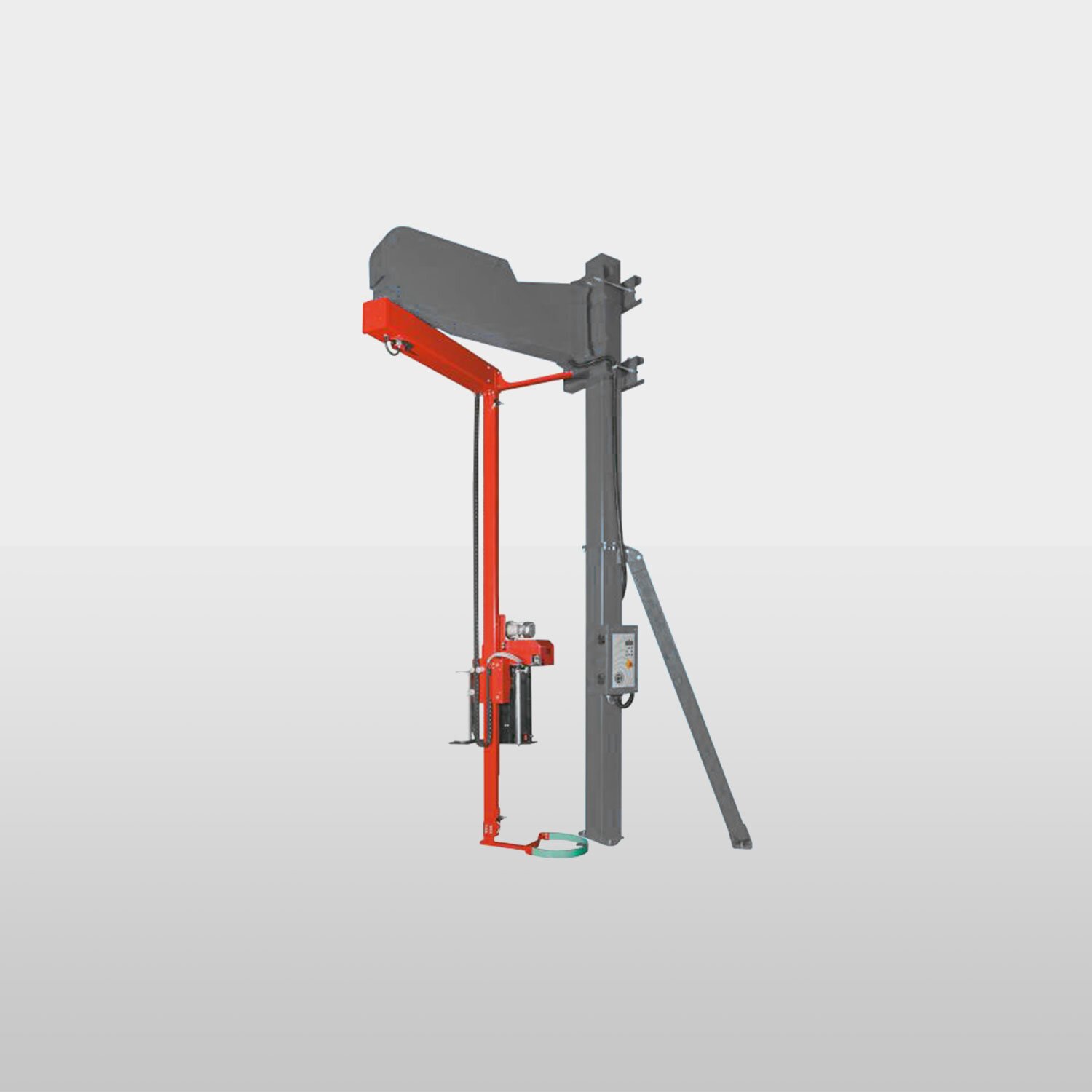

IBIS Evolvo Semi-Automatic Pallet Wrapper
Includes UK delivery and installation.
Get all the benefits of a rotating arm stretch wrapping machine for a very low price on 01639 890609.
The rotating arm wrapping machine is the perfect solution for heavy or unstable pallets.
Evolvo has been designed to offer in a very low price all the advantages of a rotating arm stretch wrapping machine. Design simplicity doesn’t have to mislead about the features of this pallet wrapper: frequency controller for every motor, standard power pre-stretch, maximum speed 18 RPM. Evolvo can be mounted on wall or on foot.
The film tension can be very light and this is really important when pallets are unstable:
Evolvo can really wrap even air!
Technical Details
Height: 3540 mm
Width: 2860 mm
Length: 3160 mm
Turntable height: mm
Weight: 600 Kg
Power supply: 230 VAC VAC 3PH+N
Power absorption: 1,5 kW
Specifications
Electronic printed circuit board for the management of the cycle
Frequency controller for carriage speed adjustment
Frequency controller for arm rotation speed adjustment
Maximum height of pallet: 2400 mm
Max size of the pallet: 1200x1000 mm
Power pre-stretch carriage
Photocell to detect the pallet height
Safety stop loop at the base of the mast
Stop at 0 position
Power board IP54
3 password levels (including lock password)
Adjustable parameters by the control panel without password: cycle selection, bottom laps, top laps, topsheet cycle parameters, rotation speed, carriage ascent speed,
carriage descent speed, film tension, starting wrapping height6 working cycles: ascent/descent; topsheet; only ascent; only descent; layers; stack
Storage of 32 end user programs
3 working ways: semimanual, semiautomatic, fixed height
Strenghtening operation
Acoustic warning at the cycle beginning and stop
Autodiagnostic
Wrapped pallet counter
Receiver for infrared/radio remote control
Powder coating
Braked arm at the end of the cycle
Product Options (Available on request)
Adjustable power pre-stretch
Power pre-stretch with auto cut-off system
Roping system
3000 mm max wrapping height
Bigger arm radius for 1200x1200 pallets
Remote control
Photocell for dark loads
Mechanical system to brake roll containers
Safety fences
Pillar
Plate for wall mounting
